Product Description

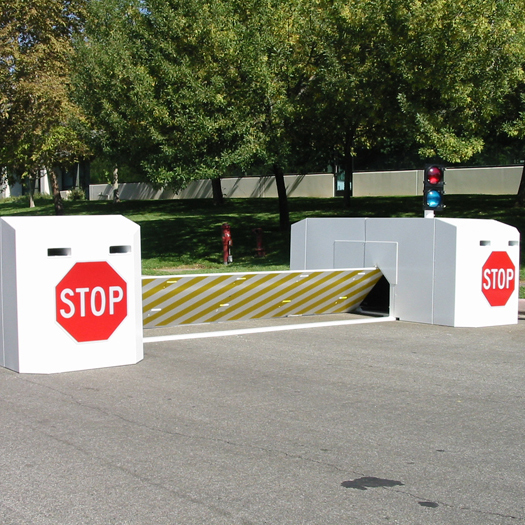

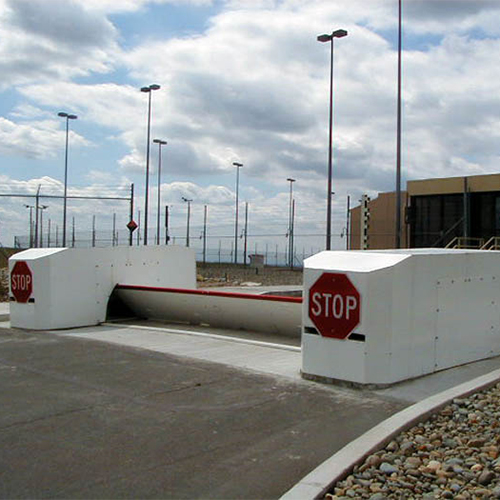

DSC1100 PORTABLE PLATE BARRICADE
Certified by: U.S. Department of State
Certification Level: K8/L1 & K4/L2
Gross Vehicle Weight: 15,000 pounds/66.7 kN
Crash Speed: 40 mph/64kph

The DSC1100 provides security against vehicle-based terrorism or thefts for high-cycle
locations such as the entrances to large office facilities, government agencies and military
bases.
Able to be deployed in high traffic locations for full manual or automatic operation within two
hours, Delta Scientific뭩 quick deployment modular Series DSC1100 Barricade features a
phalanx-type rising plate barrier mounted within multiple inertial pods.??The plate barrier lies
level to the ground to allow vehicles to pass and is raised or lowered into position utilizing a
hydraulic cylinder driven by a Delta Hydraulic Power Unit or manually operated.??The weight of
the Plate Barrier is balanced by a Hydraulic-pneumatic balance system (U.S. Patent #
5,560,733
dated 10/1/96).??The Hydraulic Pumping Unit can be sized to provide pass-through rates
suitable for most inspection and identification station requirements.

The unfilled pods weigh less than 700 pounds (318 kg) and consist of a permanent steel
housing back-filled with local concrete either in situ or remotely.??Each Pod has fork-lift slots
for moving and positioning.?? Pods can be moved using a small forklift, pallet jack, crane or
handcart.??They can be set on paved roads and driveways, undisturbed soil or any
combination.??No excavation or foundation is required.?? The portable system can be operated
using any Delta hydraulic, pneumatic or manual system including fully automatic access or
remote control by hardwire or RF links.

Operating modes include, full automatic, remote-hard line, remote-radio, card reader, key
switch, Battery Powered H4050 Pump or by local guard pushbutton station, and by other
means – or by combinations thereof.??Patents pending.
